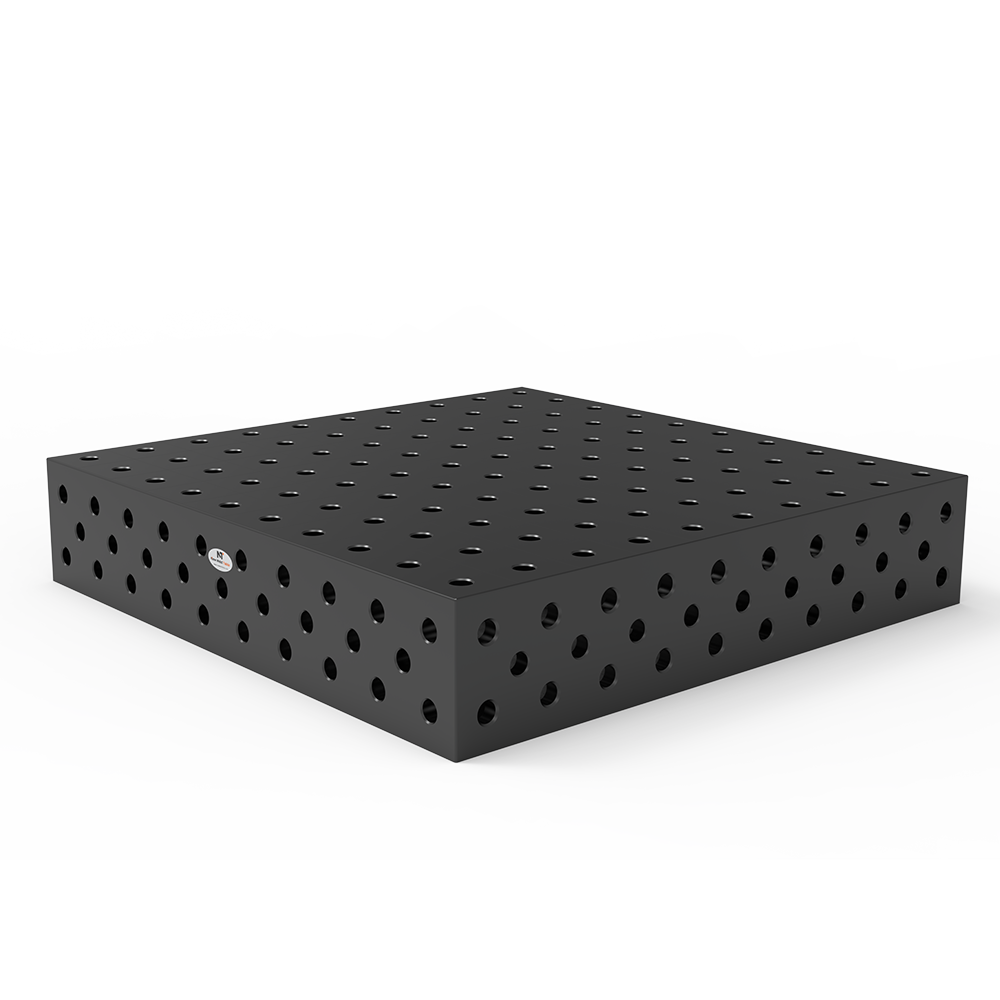

3D Welding Table PE D28

重量	N/A
尺寸	N/A

Size

清除

SKU： N/A 分类： Welding Table

Description

3D welding table is made

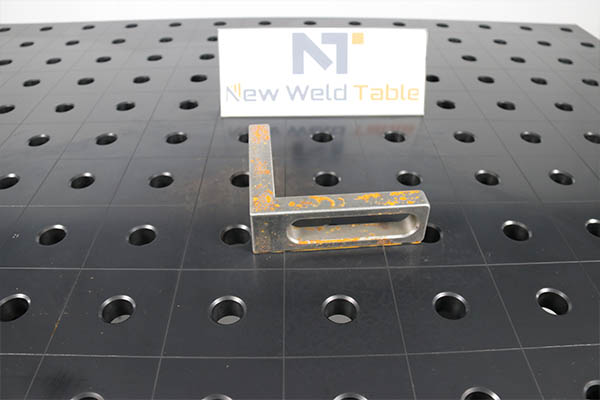

of ST52.3 material with nitriding + oxidising treatment and 0.2mm nitriding layer on the surface, which is effective in preventing corrosion, non-stick slag and resistant to bumping.
with D28 system holes, grid 100 mm x 100 mm
Three side rows of grid D28 system holes, 100 mm apart, thus significantly increasing the table extension and clamping area

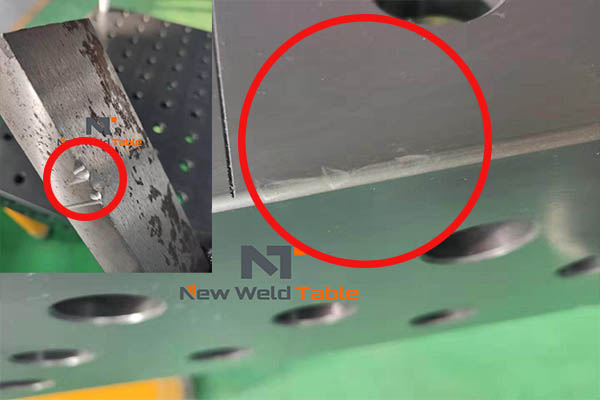

Available in various table sizes, surface hardness up to 600 Vickers.

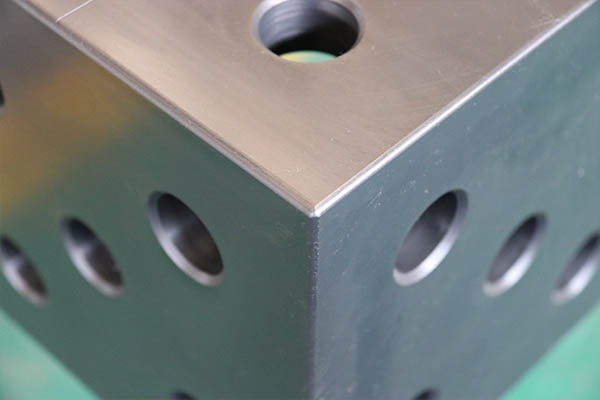

Optimized chamfering of the outer edge of the table,Rounded corners reduce the risk of injury
Improved table stability by adding ribbed plates
Grid lines with 100 mm spacing in X and Y directions

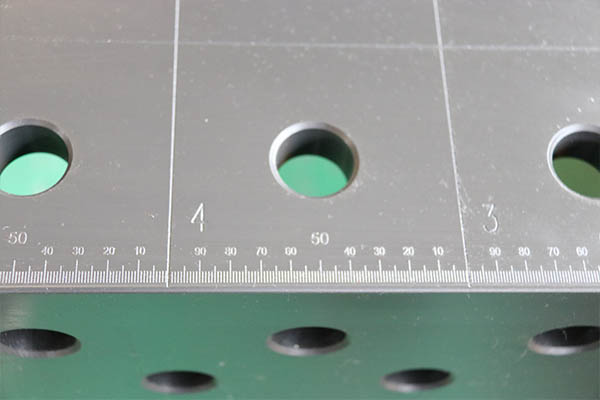

Millimeter precision scales
Table surface marked with X and Y coordinates
New Weld Table logo on two sides of the table
Round universal feet for precise height adjustment of the table
The rib spacing is 400-500mm, providing strong support.
Side holes arranged diagonally

Material	Q355B+Nitrided+Oxidation
Surface Hardness	HV400-600
Scale	Two adjacent sides have mm scales
Load	Each table leg load 800kg
Hole spacing	100mm
Hole size	28.05—28.15mm
Thickness	25mm
Side panel height	100mm
